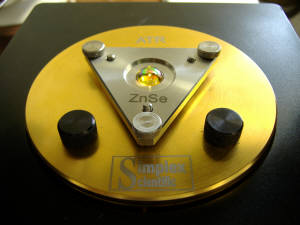

The Simplex ATR Imager provides a cost effective method of improving Infrared Microscope performance. The Imager optic of Germanium (Ge) enhance magnification and spatial resolution. By contacting the sample directly, the optic becomes a Solid Immersion Lens (SIL) and the diffraction limit of the infrared light is improved by the index of refraction of the material which is  4x with Ge.The  optics are broadband antireflection (BBAR) coated for improved throughput in Mid-IR. The ZnSe optic allows direct visual observation of the sample.

Applications

  Polymers
  Films
       Defect analysis
         Inks

Features
  Ge 12-mm hemisphere IR crystal
       AR coating to enhance throughput
  High spatial resolution
     X-Y sample adjustments
       Fits manual and motorized stages
       Includes protective case
